Stainless Steel Doors

SCREENGUARD® Product Options:

• Hinged Door
• Sliding Door
• Multi-fold Door
• Fixed window
• Patio Enclosure

Screengaurd design helping to keep you safe

SCREENGUARD® is designed for the Australian climate and is suitable for all windows and doors.

The SCREENGUARD® stainless steel mesh security system was designed to protect your view and it does just that.

SCREENGUARD® patented systems protect beautifully.

No Longer do you need to look ugly grilles, bars or similar obstructions that spoil your view. Take advantage of woven stainless steel mesh protection and enjoy the finest in security screens.

Warranty

SCREEENGUARD® product warranty is for 10 years from the date of product installation(conditions apply).

This warranty is to the original purchaser providing always that the product care and maintenance recommendations along with the warranty conditions have been compiled with during that period.

Care & Maintenance:

Your SCREENGUARD® Security System will require regular maintenance to remove contaminants cause by pollution, industry ,salt and climatic conditions.

Regular maintenance with Screenguard “Powa Wash” is required to comply with your Screenguard 10 years warranty.

Abrasive cleaners and harsh detergents are not recommended as these can scratch or damage the surface area.

Screenguard Product Testing

ScreenGuard’s patented security screen products have been tested and meet Australian Standard AS5039/5041. These tests are designed to simulate an attack using force to gain entry into a home.

DYNAMIC IMPACT TEST

Australian Standard AS5039/5041-2008 Security Screen Doors and Security Windows Grilles.

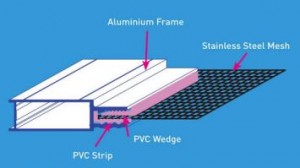

ScreenGuard’s patented two-piece wedge and seat design is simple yet strong. It has been tested beyond the Australian standard by resisting all five impacts well beyond the 100 joules required. Exceeding the standard requirements ensures ScreenGuard™ is fit for purpose.

DYNAMIC IMPACT TEST	TEST NO.	PASS
Hinged Security Screen Door	AZT0261.19	Y
Sliding Security Screen Door	AZT0063.12	Y
Access Fire Escape	AZT0290.14	Y

ANTI-JEMMY TEST

Australian Standard AS5039/5041-2008 Security Screen Doors and Security Windows Grilles.

ScreenGuard™ successfully passed jemmy attack testing simulating an intruder attacking with items such as screwdrivers and a large amount of force. Testing has been repeated for a range of major hardware products sold by Darley Aluminium to give customers a range of locking options.

ANTI-JEMMY TEST	TEST NO.	PASS
Hinged Security Screen Door	AZT0261.19	Y
Sliding Security Screen Door	AZT0063.12	Y
Security Window Grille	AZT0290.14	Y

KNIFE SHEAR TEST

Australian Standard AS5039-2008 Security Screen Doors and Security Windows Grilles.

Another important successful feature of ScreenGuard™ is its resistance to knife attack by passing the Australian standard requirements simulating an intruder trying to gain entry using a utility knife.

KNIFE SHEAR TEST	TEST NO.	PASS
ScreenGuard Mesh	AZT0451.17	Y

CHILD FALL PREVENTION

Protection of openable windows.

With appropriate installation, ScreenGuard™ has proven to be a suitable option to help prevent children from falling from high windows.

OUTWARD FORCE TEST	PASS
Resist 250N Outward Force	Y

BUSHFIRE RATED

Australian Standard AS3959-2009 Construction of buildings in bushfire-prone areas.

ScreenGuard™ is bushfire-rated and protects your property from floating embers and reduces heat intensity of radiant heat flux.

BUSHFIRE TEST	PASS
BAL40 rating for Screenguard	Y

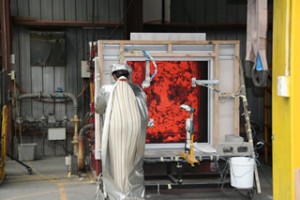

FIRE ATTENUATION

Australian Standard AS1530.4-2014 Appendix B7.

Assists in protecting fire and radiant heat spread between buildings in the event of a fire.

FIRE ATTENUATION TEST	TEST NO.	PASS
Achieves a fire attenuation rating of up to 46% at 40kW/m2 incident energy	2519600.1	Y
SEREENGUARD ACHIEVES A MARKET LEADING FIRE ATTENUATION TIME OF 3 HOURS AND 10 MIINUTES.

All testing is carried out by a NATA registered independent testing laboratory according to strict Australian standards.
