How double security screen doors work as a unified system

Double security screen doors are paired door panels designed to operate as a single, reinforced barrier rather than two independent doors. The distinction matters because a standard double-door setup has an obvious vulnerability: the gap running down the centre seam. A quality security system eliminates that weakness entirely.

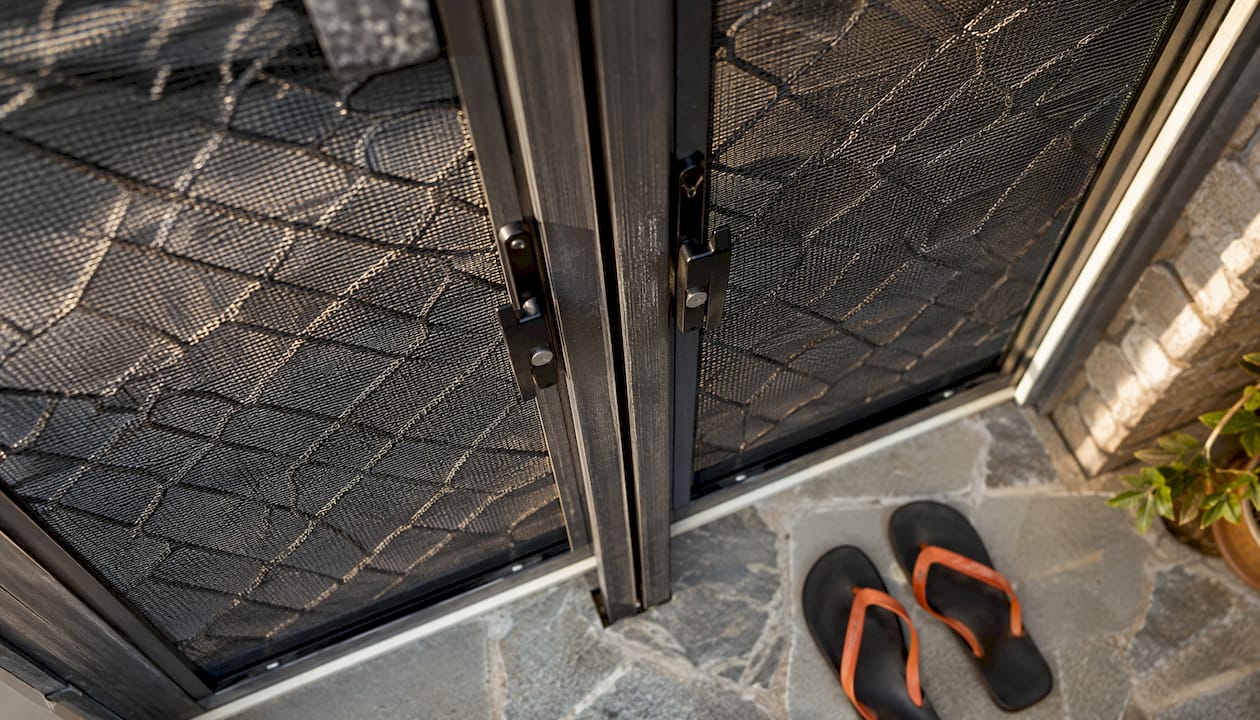

The key component is the astragal, a vertical strip that runs the full height of the door along the meeting edge where the two leaves come together. It seals the gap against drafts, insects, and forced entry attempts, and it acts as a physical stop for the active leaf. Without a properly fitted astragal, even heavy-duty locks leave that centre seam exposed to a pry bar.

Locking hardware completes the system. Multi-point locking bolts anchor into both the header above and the threshold below, so the passive leaf is held firmly at top and bottom by heavy-duty flush bolts. The active leaf then locks securely against the astragal. The result is a door assembly that behaves structurally like a single panel under force.

Key components of an integrated double security screen door system:

• Astragal strip: seals the centre seam and stops the active leaf
• Flush bolts: anchor the passive leaf into the frame header and threshold
• Multi-point locking mechanism: distributes load across multiple points on the active leaf
• Reinforced frame: aluminium, steel, or stainless steel perimeter holding the assembly rigid
• Security mesh: high-tensile woven or perforated mesh resisting cutting and impact

Table of Contents

• Why double security screen doors suit Australia’s climate and security needs
• Design elements and materials that determine long-term performance
• How to get professional installation right the first time
• Maintenance that keeps your doors performing year after year
• Cost considerations for double security screen doors in Australia
• Easterndoors: custom double security screen doors, measured and installed for your home
• Key takeaways

Why double security screen doors suit Australia’s climate and security needs

The practical case for security screens for double doors goes beyond deterring intruders. Australian homes face a specific combination of demands: warm summers that require airflow, insects year-round, and the need for a front entry that looks good from the street.

• Forced-entry resistance: an integrated astragal and locking system removes the centre seam as a pry point, making the paired doors significantly harder to force than two separate panels
• Ventilation: the mesh and frame design allows cross-ventilation through both panels simultaneously, which a single security door cannot match for wide openings
• Insect barrier: a properly sealed astragal with weatherstrip leaves no gap for insects to enter, even with both doors open to the screen
• Aesthetic versatility: double entry screens suit Federation, Hamptons, contemporary, and heritage-style homes, with powder-coat colour options to match any façade
• Weather sealing: quality astragals with compression seals reduce air infiltration, which matters in both hot and cold climates
• Compliance: security doors meeting AS 5039.1:2023 provide a recognised performance benchmark for forced-entry resistance, giving homeowners confidence their installation meets Australian standards

Aluminium security doors in particular offer superior ventilation through wide openings while maintaining the insect and intruder barrier that single doors cannot provide at the same scale.

Design elements and materials that determine long-term performance

Getting the design right starts with the astragal, not the frame colour. Astragal selection is where most double-door problems originate, and where most of the performance gains are made.

Astragal types:

• Overlapping astragal: mounts on the passive leaf and covers both leaves at the meeting edge. Works well when one door stays closed most of the time, but requires a door coordinator to control closing order when both leaves are active
• Two-piece compensating astragal: splits into two interlocking sections, one on each leaf, allowing both doors to open and close independently without interference. The right choice when both leaves are used regularly

Frame materials:

• Aluminium: lightweight, corrosion-resistant, and available in a wide powder-coat range. Suits most Australian residential applications
• Steel: heavier and stronger under impact, suited to higher-risk properties or wider openings where rigidity matters
• Stainless steel: the premium choice for coastal properties where salt air accelerates corrosion in standard aluminium or mild steel

Mesh options:

• High-tensile stainless steel woven mesh: the most common security-grade choice, balancing airflow, visibility, and resistance to cutting
• Perforated steel: greater opacity for privacy, with strong impact resistance
• Aluminium fly mesh: not a security product; suited only to insect screening without security requirements

Custom manufacturing provides superior sealing, fit, and aesthetic appeal compared to off-the-shelf options, particularly for non-standard openings or heritage homes where proportions matter. Easterndoors integrates astragal type, locking hardware, frame material, and mesh selection as a coordinated system rather than treating each component separately.

Pro Tip: For a double entry where both leaves open regularly, specify a two-piece compensating astragal from the outset. Retrofitting one after installation is possible but adds cost and complexity.

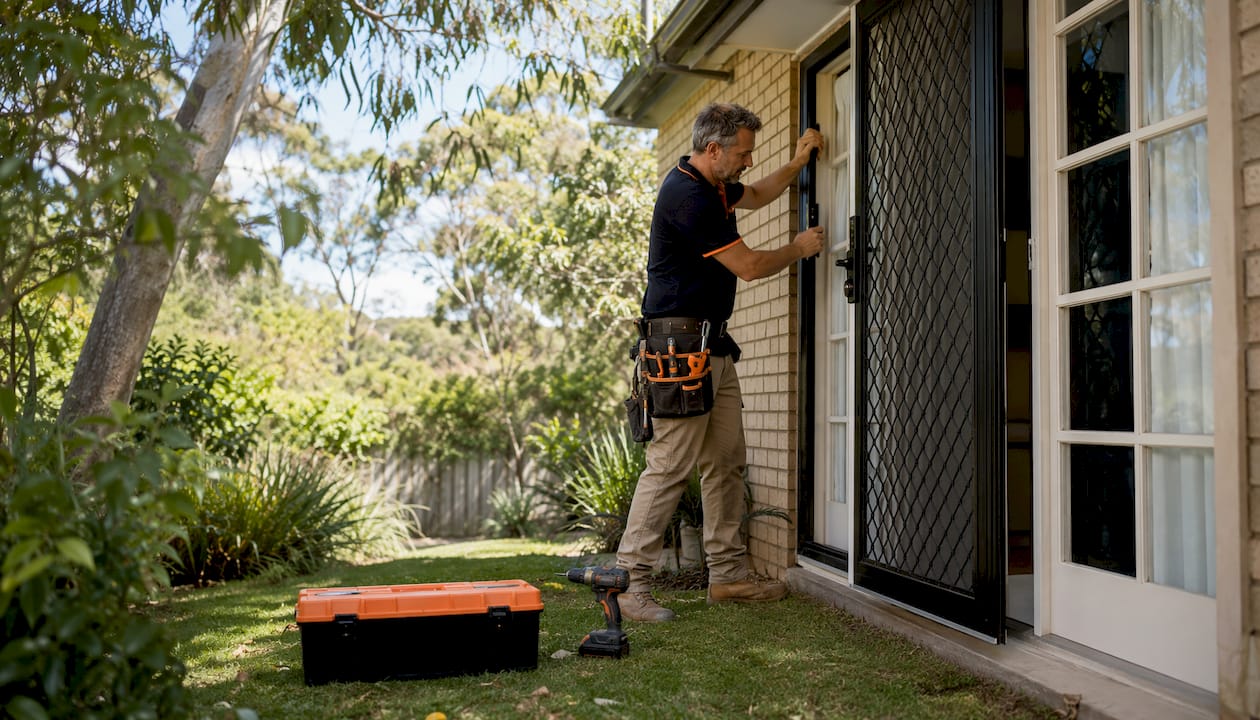

How to get professional installation right the first time

Professional installation of double security screen doors is not simply a matter of hanging two panels. The system only performs as intended when every component is measured, aligned, and fitted as a coordinated assembly.

• Precise measurement: door openings in older Australian homes frequently deviate from standard dimensions. Measurements must account for out-of-square frames, uneven thresholds, and any structural movement
• Astragal alignment: the astragal must sit flush and plumb along the full height of the door. Even a few millimetres of misalignment creates a gap that compromises both weather sealing and security
• Flush bolt installation: the passive leaf flush bolts must engage cleanly into strike plates set into the header and threshold. Loose or misaligned bolts allow the passive leaf to flex under pressure
• Door coordinator (where required): overlapping astragal systems need a door coordinator fitted to the frame to control closing sequence. Without one, both doors closing simultaneously can damage the astragal or prevent proper latching
• Lock alignment: the active leaf multipoint lock must engage all bolt points without binding. Hardware alignment is checked under load, not just in the open position
• Independent operation check: if both leaves are active, each should open and close smoothly without the other moving

Common problems from poor installation include doors that fail to latch, centre seam gaps that reappear under wind pressure, and flush bolts that bind or pull loose over time. Working with a provider experienced in security door installation eliminates most of these issues before they occur.

Pro Tip: Always check that both doors operate smoothly and independently before the installer leaves. Latching, locking, and flush bolt engagement should all be tested with the door under normal closing force, not pushed hard.

Maintenance that keeps your doors performing year after year

A well-installed double security screen door requires relatively little upkeep, but a few consistent habits prevent the small issues that become expensive repairs.

• Inspect the astragal weatherstrip every six months: look for compression, tearing, or gaps where the strip no longer contacts the opposite leaf. A worn weatherstrip lets insects and drafts through and signals the astragal may need replacement
• Lubricate flush bolts and locking mechanisms annually: a dry bolt binds under use and eventually fails. A light application of a dry lubricant or silicone spray keeps hardware operating smoothly without attracting dust
• Check the centre seam for movement or flex: push gently on each door near the meeting edge. Any flex or gap indicates the flush bolts or astragal may need adjustment
• Clean mesh and frames appropriately: aluminium frames clean with mild detergent and water. Stainless steel mesh benefits from a rinse with fresh water in coastal areas to remove salt deposits. Avoid abrasive cleaners on powder-coat finishes
• Schedule professional servicing when hardware feels stiff or misaligned: security screen and fly door repair by a qualified technician restores alignment, replaces worn weatherstrips, and verifies that the system still meets its original security performance

Improper installation or worn astragal hardware can cause door flex, air gaps, and decreased security over time. Catching these signs early through regular inspection is far less disruptive than a full hardware replacement.

Cost considerations for double security screen doors in Australia

Double security screen doors represent a higher investment than a single security door, and the price reflects the additional components, custom manufacturing, and installation complexity involved.

Several factors drive the final cost:

• Opening width: wider openings require heavier frames and more robust hardware, which increases material costs
• Astragal type: a two-piece compensating astragal with a door coordinator costs more than a basic overlapping strip, but it is the correct specification for actively used double doors
• Frame material: aluminium is the most affordable option; steel and stainless steel carry a premium, with stainless steel commanding the highest price due to material and fabrication costs
• Mesh grade: standard woven stainless steel mesh is priced differently from perforated steel or specialised high-security grades
• Custom design: heritage profiles, decorative grilles, and bespoke powder-coat colours add to manufacturing time and cost
• Installation complexity: out-of-square openings, heritage frames, or multi-storey access all affect installation time

Custom-made double security screen doors in Australia are priced individually based on these variables, so a detailed on-site measure and quote is the only reliable way to budget accurately. Choosing a provider who manufactures and installs the doors directly, rather than outsourcing either step, typically delivers better value and accountability over the life of the product.

Easterndoors: custom double security screen doors, measured and installed for your home

Easterndoors specialises in custom-made security doors and screens for residential properties across Melbourne, with the full process handled in-house: consultation, measurement, manufacturing, and installation. For homeowners who want double security screen doors that perform as a properly integrated system rather than two panels bolted together, that end-to-end accountability matters.

The team at Easterndoors brings expertise in astragal selection, multi-point locking hardware, and frame specification to every job. Whether the opening calls for an aluminium frame in a contemporary home or a steel door for a wider, higher-risk entry, the solution is built to the specific dimensions and requirements of the property. Fast turnaround and competitive pricing mean you are not waiting months or paying agency rates for a product that fits correctly from day one.

Browse Easterndoors’ full door range or contact the team directly to arrange a measure and quote for your home.

Key takeaways

A double security screen door system performs as a single secure barrier only when the astragal, flush bolts, multi-point locking hardware, and frame are specified and installed as an integrated assembly.
